Mystery Of The CSS Float Property

Float-Related Bugs in Internet Explorer

Over the years, there have been numerous articles published online that discuss common bugs in connection with floats in CSS layouts. All of these, not surprisingly, deal with problems specific to Internet Explorer. Below, you’ll find a list of links to a number of articles that discuss float-related issues in-depth:

Changing the Float Property with JavaScript

To change a CSS value in JavaScript, you would access the style object, converting the intended CSS property to “camel case”. For example, the CSS property “margin-left” becomes marginLeft; the property background-color becomes backgroundColor, and so on. But with the float property, it’s different, because float is already a reserved word in JavaScript. So, the following would be incorrect:

myDiv.style.float = "left";

Instead, you would use one of the following:

// For Internet Explorer
myDiv.style.styleFloat = "left";
// For all other browsers
myDiv.style.cssFloat = "left";

Practical Uses for Float

Floats can be used to resolve a number of design challenges in CSS layouts. Some examples are discussed here.

2-Column, Fixed-Width Layout

Roger Johansson of 456 Berea Street outlines an 8-step tutorial to create a simple, cross-browser, 2-column, horizontally centered layout. The float property is integral to the chemistry of this layout.

“The layout consists of a header, a horizontal navigation bar, a main content column, a sidebar, and a footer. It is also horizontally centered in the browser window. A pretty basic layout, and not at all difficult to create with CSS once you know how to deal with the inevitable Internet Explorer bugs.”

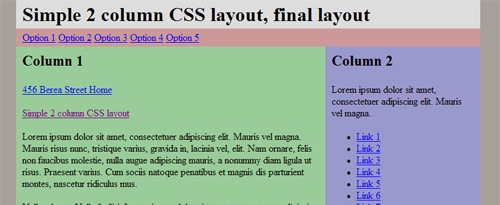

2-Column Layout
Simple 2 column CSS layout

3-Column, Equal-Height Layout

Petr Stanicek of pixy.cz demonstrates a cross-browser 3-column layout, again using float:

“No tables, no absolute positioning (no positioning at all), no hacks(!), same height of all columns. The left and right columns have fixed width (150px), the middle one is elastic.”

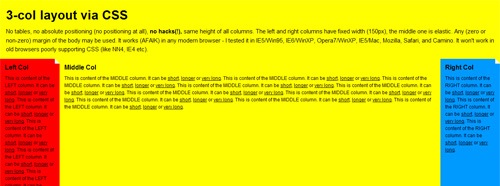

3-Column Layout with CSS

Floated Image with Caption

Similar to what we discussed earlier under “Float in Practice”, Max Design describes how to float an image with a caption, allowing text to wrap around it naturally.

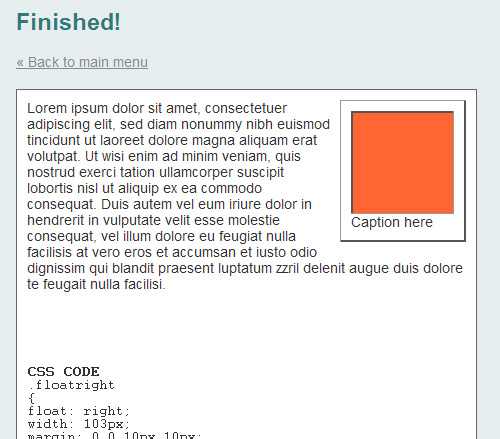

Floated Image with Caption
Floating an Image and Caption

Horizontal Navigation with Unordered Lists

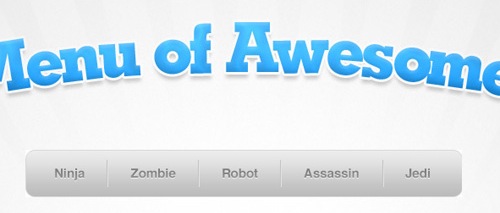

The float property is a key ingredient in coding sprite-based horizontal navigation bars. Chris Spooner of Line25 describes how to create a Menu of Awesomeness, in which the <li> elements that hold the navigation buttons are floated left:

How to Create a CSS Menu Using Image Sprites

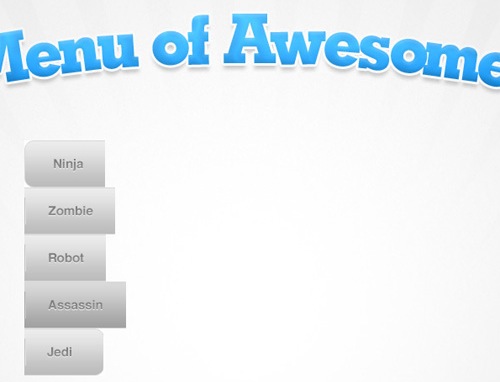

To demonstrate the importance of the float property in this example, here is a screen shot of the same image after using firebug to remove the float: left:

Grid-Based Photo Galleries

A simple use for the float property is to left-float a series of photos contained in an unordered list, which gets the same result as what you would see in a table-based layout.

Foremost Canada

Foremost Canada’s product page (above) displays their products in grid-based format, next to a left-column sidebar. The photos are displayed in an unordered list with the float property for all <li> elements set to float: left. This works better than a table-based grid, because the number of photos in the gallery can change and the layout would not be affected.

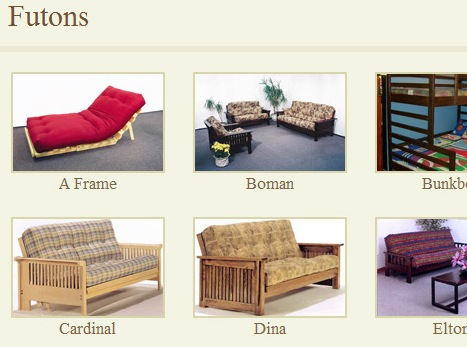

Paragon Furniture

Paragon Furniture’s futons page (above) is another example of a product page using an unordered list with floated list items.

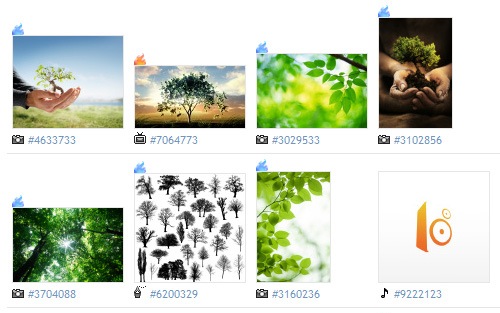

iStockphoto

iStockphoto’s search results page (above) is a similarly-structured grid of photos, but this time the photos are contained in left-floated <div> elements, instead of <li> elements.

Aligning an <input> Field with a Button

Default styling on form elements across different browsers can be a pain to deal with. Often times, in a single-field form like a search form, it is necessary to place the <input> element next to the submit button. Here is a simple search form, with an image used for the submit button:

In every browser, the result is the same: The button appears slightly higher than the input field. Changing margins and padding does nothing. The simple way to fix this is to float the input field left, and add a small right margin. Here is the result:

Conclusion

As was mentioned at the outset, without the CSS float property, table-less layouts would be, at worst, impossible, and, at best, unmaintainable. Floats will continue to be prominent in CSS layouts, even as CSS3 begins to gain prominence — even though there have been a few discussions about layouts without the use of floats.

Hopefully this discussion has simplified some of the mysteries related to floats, and provided some practical solutions to a number of issues faced by CSS developers today.
